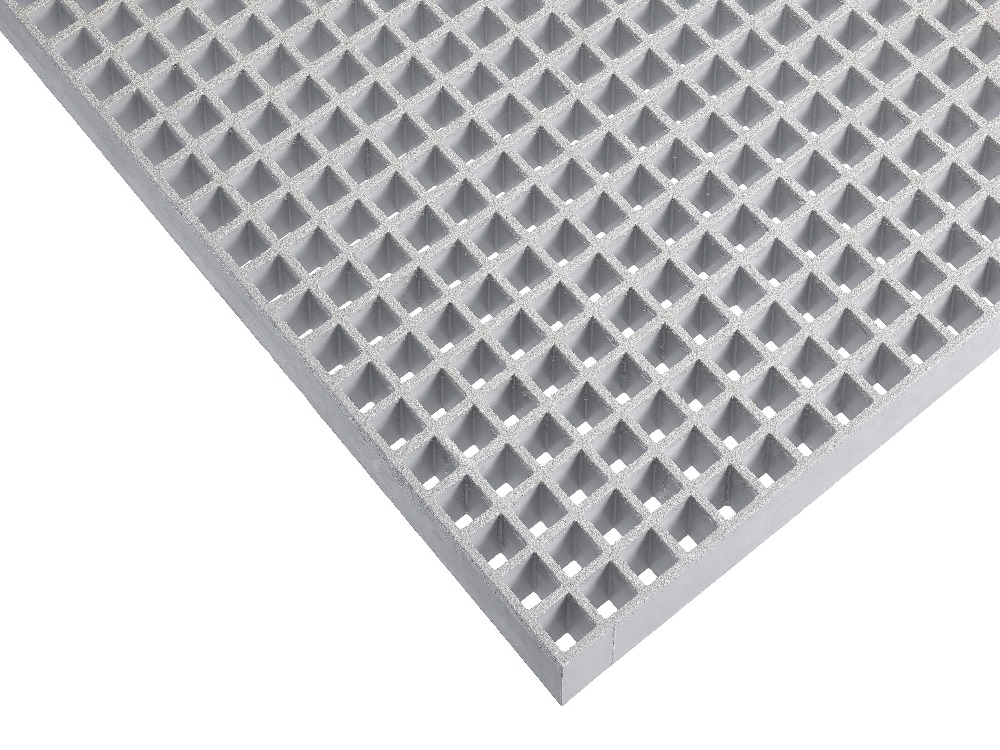

Moulded GRP-Gratings - gritted

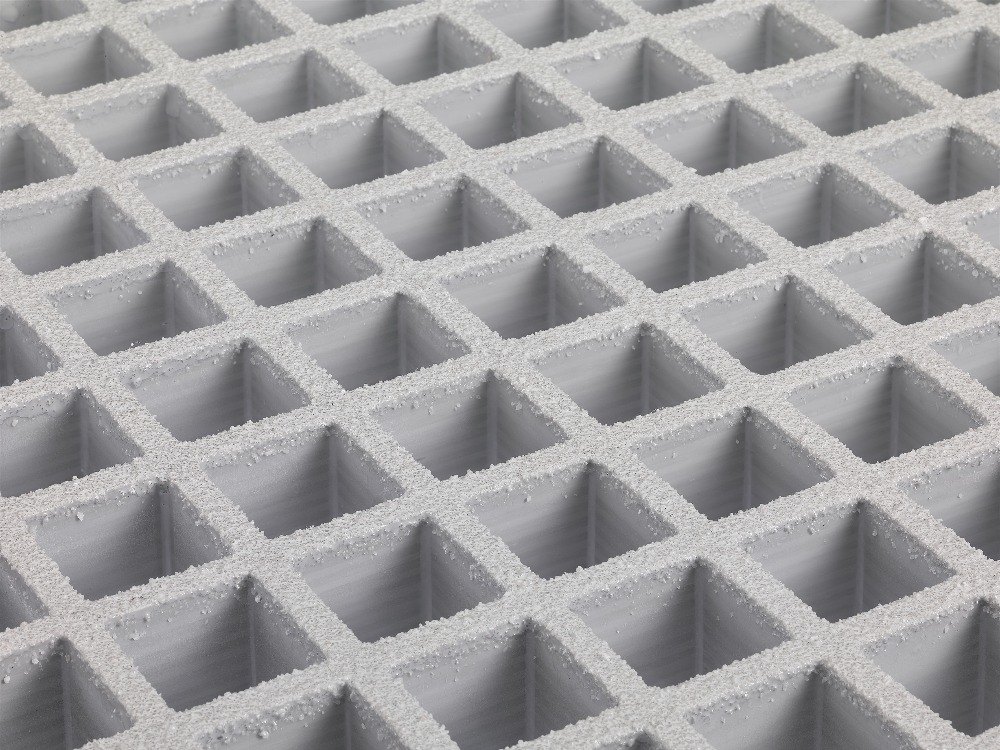

The surface of the gritted gratings is subsequently coated with corundum sand (grating type GRP-BK) or quartz sand (grating type GRP-BQ). The grit is applied subsequently with a resin.
Gratings type BK - with corundum sanding - are particularly suitable for wet areas or for areas where lubricants and oils are used. This type of grating achieves serration class R13.
The quartz sanded gratings are often used in barefoot areas such as swimming pools. This type of grating also achieves serration class R13.
Characteristics
- high corrosion and weather resistance
- high chemical resistance
- hygienic and resistant to bacteria
- the gratings are loadbearing in the direction of the supporting rods and the crossbars
- does not conduct electricity
- low thermal diffusivity
- Anti-slip up to R13
- relatively low unladen weight
- simple and quick on-site assemply
- high levels of comfort for walking and standin
| Model code | Height mm | Pitch mm | Mesh mm | Bar mm | Weight kg/m² | Panel dimension mm | on stock | ||
|---|---|---|---|---|---|---|---|---|---|
| BK513-38-5 | 13 | 38,10 x 38,10 | 32,10 x 32,10 | 5 - 6 | 6,68 | 1226 | x | 3664 | |
| 1415 | x | 4046 | |||||||
| BK513-50-5 | 13 | 50,80 x 50,80 | 44,80 x 44,80 | 5 - 6 | 6,77 | 1226 | x | 3664 | |
| BK514-19-5 | 14 | 19,05 x 19,05 | 13,05 x 13,05 | 5 - 6 | 12,14 | 1226 | x | 3664 | |
| BK522-19-5 | 22 | 19,05 x 19,05 | 12,95 x 12,95 | 5 - 6,1 | 14,84 | 1226 | x | 2445 | |
| BK522-38-5 | 22 | 38,10 x 38,10 | 32,00 x 32,00 | 5 - 6,1 | 11,31 | 1226 | x | 2445 | |
| BK525-19-5 | 25 | 19,05 x 19,05 | 12,80 x 12,80 | 5 - 6,25 | 17,24 | 1226 | x | 3664 | |
| BK525-25/102-5 | 25 | 25,40 x 101,60 | 19,15 x 95,35 | 5 - 6,25 | 13,80 | 921 | x | 3055 | |
| BK525-38-5 | 25 | 38,10 x 38,10 | 31,85 x 31,85 | 5 - 6,25 | 13,04 | 998 | x | 3664 | |
| 1226 | x | 2445 | x | ||||||
| 1226 | x | 3664 | |||||||
| 1226 | x | 4083 | |||||||
| BK525-40-5 | 25 | 40,00 x 40,00 | 33,75 x 33,75 | 5 - 6,25 | 12,59 | 1000 | x | 2000 | |
| 1000 | x | 4047 | |||||||
| 1527 | x | 4047 | |||||||
| BK525-50-5 | 25 | 50,80 x 50,80 | 44,55 x 44,50 | 5 - 6,25 | 11,45 | 1277 | x | 3817 | |
| BK530-20-5 | 30 | 20,00 x 20,00 | 13,50 x 13,50 | 5 - 6,5 | 18,43 | 1000 | x | 2000 | |
| 1000 | x | 4000 | |||||||
| 1000 | x | 4047 | |||||||
| BK530-38-5 | 30 | 38,10 x 38,10 | 31,60 x 31,60 | 5 - 6,5 | 15,47 | 921 | x | 3055 | |
| 998 | x | 1990 | |||||||
| 998 | x | 4045 | |||||||
| 1226 | x | 2445 | |||||||
| 1226 | x | 3665 | x | ||||||
| 1226 | x | 4045 | |||||||
| 1531 | x | 3665 | x | ||||||
| BK530-40-5 | 30 | 40,00 x 40,00 | 33,50 x 33,50 | 5 - 6,5 | 14,79 | 1000 | x | 2000 | |
| 1000 | x | 3000 | |||||||
| 1000 | x | 4047 | |||||||
| 1247 | x | 4047 | |||||||
| BK538-19-5 | 38 | 19,05 x 19,05 | 12,15 x 12,15 | 5 - 6,9 | 24,16 | 1227 | x | 3665 | |
| 1531 | x | 4083 | |||||||
| 1646 | x | 3665 | |||||||
| BK538-20-5 | 38 | 20,00 x 20,00 | 13,50 x 13,50 | 5 - 6,9 | 1527 | x | 4047 | ||
| 1527 | x | 4047 | |||||||
| BK538-25-5 | 38 | 25,40 x 25,40 | 18,50 x 18,50 | 5 - 6,9 | 19,79 | 1227 | x | 3666 | |
| BK538-38-5 | 38 | 38,10 x 38,10 | 31,20 x 31,20 | 5 - 6,9 | 19,82 | 922 | x | 3055 | |
| 998 | x | 1990 | |||||||
| 998 | x | 4084 | |||||||
| 998 | x | 4046 | |||||||
| 1227 | x | 2446 | |||||||
| 1227 | x | 3665 | x | ||||||
| 1227 | x | 4046 | |||||||
| 1531 | x | 4046 | |||||||
| 1531 | x | 3970 | x | ||||||
| 1646 | x | 4083 | |||||||
| BK538-40-5 | 38 | 40,00 x 40,00 | 33,10 x 33,10 | 5 - 6,9 | 19,43 | 1000 | x | 2000 | |
| 1000 | x | 3000 | x | ||||||
| 1247 | x | 4047 | |||||||
| 1000 | x | 4047 | |||||||
| BK538-66-5 | 38 | 66,08 x 66,08 | 59,18 x 59,18 | 5 - 6,9 | 13,00 | 1196 | x | 3641 | |
| BK540-83-5 | 40 | 83,30 x 83,30 | 76,30 x 76,30 | 5 - 7 | 11,50 | 1257 | x | 4007 | |
| BK550-25-5 | 50 | 25,40 x 25,40 | 17,90 x 17,90 | 5 - 7,5 | 24,40 | 1227 | x | 3666 | |
| 1227 | x | 4074 | |||||||
| 1532 | x | 3666 | |||||||
| 1684 | x | 3666 | |||||||
| 1684 | x | 4274 | |||||||
| BKS950-25/50-9 | 50 | 25,40 x 50,80 | 13,90 x 39,30 | 9 - 11 | 47,30 | 1231 | x | 3669 | |
| BK550-38-5 | 50 | 38,10 x 38,10 | 30,60 x 30,60 | 5 - 7,5 | 28,00 | 1532 | x | 3666 | |
| BK550-50-5 | 50 | 50,80 x 50,80 | 43,30 x 44,30 | 5 - 7,5 | 21,27 | 1227 | x | 3666 | |
| 1227 | x | 4071 | |||||||
| 1531 | x | 4071 | |||||||
| BKS750-38-7 | 50 | 38,10 x 38,10 | 29,10 x 29,10 | 6,5 - 9 | 32,50 | 1229 | x | 3666 | |
| 1229 | x | 4049 | |||||||
| 1533 | x | 3666 | |||||||
| BKS950-38-9 | 50 | 38,10 x 38,10 | 27,10 x 27,10 | 9 - 11 | 41,00 | 1231 | x | 3669 | x |
| 1231 | x | 4048 | |||||||
| 1649 | x | 3669 | |||||||
| BKS960-38-9 | 60 | 38,10 x 38,10 | 27,10 x 27,10 | 9 - 11 | 46,00 | 1231 | x | 3669 | x |
The gratings available from stock are manufactured on the basis of a high quality isopthalic resin and are available in the standard version in grey similar to RAL7035.The gratings available from stock are manufactured on the basis of a high quality isopthalic resin and are available in the standard version in grey similar to RAL7035.
The above mentioned gratings can also be manufactured with a quartz sanding. The quartz sanding is particularly suitable in barefoot areas. The model code is e.g. BQ538-38-5. Quartz sanded gratings are not available from stock.
1 only in yellow similar to RAL 1003
2 also available in yello similar to RAL 1003
3 also available in vinylester resin version in grey similar to RAL7042
The chemical resistance of the grating is determined by the resin used. The following resin versions are possible:
| Orthophal resin: | medium chemical resistance |
| Isophtalic resin: | good chemical resistance |
| Vinyl ester resin: | very good chemical resistance |
Fixing material B120TR
Clamp fixation B120TR
for GRP micromesh gratings with a pitch of 19,05x19,05 / 20x20 mm.
consisting of:
- Plate upper part XOT52
- clamp lower part XU117
- Screw M8 DIN7991
- Nut M8 DIN557
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A.
Order No. B120TR-ST+screw length (galvanized)
Order No. B120TR-A2+screw length (stainless steel V2A)
Order No. B120TR-A4+screw length (stainless steel V4A)
Under the provisions of BG, only permitted if an additional on-site security against shifting is present.
Fixing material B 138T
Clamp fixation B 138T
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and max. width of bars 5 to 6,9 mm.
consisting of:
- Plate upper part XOT50
- clamp lower part XU13840
- Screw M8 DIN 933
- Nut M8 DIN557
- Plastic locking ring
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B138T-ST+screw length (galvanized)
Order No. B138T-A2+screw length (stainless steel V2A)
Order No. B138T-A4+screw length (stainless steel V4A)
Under the provisions of BG, only permitted if an additional on-site security against shifting is present.
Fixing material B151T
Clamp fixation B151T
For GRP-Gratings with a pitch of 50,8x50,8 mm.
consisting of:
- Plate upper part XOT65
- Clamp lower part XU150
- Screw M8 DIN 933
- Nut M8 DIN557
- Plastic locking ring
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B151T-ST+screw length (galvanized)
Order No. B151T-A2+screw length (stainless steel V2A)
Order No. B151T-A4+screw length (stainless steel V4A)
Under the provisions of BG, only permitted if an additional on-site security against shifting is present.
Fixing material B15025TR
Clamp fixation B15025TR
For GRP-Gratings with a pitch of 25,4x25,4 mm.
consisting of:
- Plate upper part XOT52
- Clamp lower part XU15250
- Screw M8 DIN 7991
- Nut M8 DIN557
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B15025TR-ST+screw length (galvanized)
Order No. B15025TR-A2+screw length (stainless steel V2A)
Order No. B15025TR-A4+screw length (stainless steel V4A)
Under the provisions of BG, only permitted if an additional on-site security against shifting is present.
Fixing material B138K
Clamp fixation B138K
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and max. width of bars 5 to 6,9 mm.
consisting of:
- Klammeroberteil XOK13840
- Clamp lower part XU13840
- Screw M8 DIN 933
- Nut M8 DIN557
- Plastic locking ring
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B138K-ST+screw length (galvanized)
Order No. B138K-A2+screw length (stainless steel V2A)
Order No. B138K-A4+screw length (stainless steel V4A)
Under the provisions of BG, only permitted if an additional on-site security against shifting is present.
Fixing material B138KMS
Clamp fixation B138KMS
For GRP-Gratings with a pitch of 38,1x38,1 mm and width of bars 6,5 to 9 mm and/or 9 to 11 mm.
consisting of:
- Klammeroberteil XOM38
- Clamp lower part XU13324
- Screw M8 DIN 933
- Nut M8 DIN557
- Plastic locking ring
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B138KMS-ST+screw length (galvanized)
Order No. B138KMS-A2+screw length (stainless steel V2A)
Order No. B138KMS-A4+screw length (stainless steel V4A)
Under the provisions of BG, only permitted if an additional on-site security against shifting is present.
Fixing material B438T
Threaded bolt fixing B438T
consisting of:
- Plate upper part with firmly conected threaded sleeve made of Duplex-coating or in stainless steel V4A
- setting bolt (different executions available)
This fixing material prevents a slippage of the grating from the substructure even when the bolt is loosened and can be mounted from above. This fastening fits mesh spacing ranging from approx. 25 to 40 mm.
Fixing material B638T
Direct fixing B638T
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and a max. width of bars 5 to 6,9 mm.
consisting of:
- Plate upper part XOT50
- Screw M8 DIN 933
- Nut M8 DIN557
- Plastic locking ring
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B638T-ST+screw length (galvanized)
Order No. B638T-A2+screw length (stainless steel V2A)
Order No. B638T-A4+screw length (stainless steel V4A)
Fixing material B638K
Direct fixing B638K
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and a max. width of bars 5 to 6,9 mm:
consisting of:
- Klammeroberteil XOK13840
- Screw M8 DIN 933
- Nut M8 DIN557
- Plastic locking ring
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B638T-ST+screw length (galvanized)
Order No. B638T-A2+screw length (stainless steel V2A)
Order No. B638T-A4+screw length (stainless steel V4A)
Fixing material B738T
Hook bolt fixing material B738T
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and max. widht of bars 5 to 6,9 mm.
consisting of:
- Plate upper part XOT50
- Screw M8 DIN 933
- Hook bolt, fitted to the substructure
- Plastic locking ring
The profile of the substructure must be specified. This fixing material can be assembled from above.
The fixing material can be executed also with a clamp upper part or different other plate upper parts.
Fixing material B838T
Hook bolt fixing material B838T
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and max. widht of bars 5 to 6,9 mm.
consisting of:
- Plate upper part XOT50
- Screw M8 DIN 933
- Hook bolt, fitted to the substructure
- Plastic locking ring
The profile of the substructure must be specified. This fixing material can be assembled from above.
The fixing material can be executed also with a clamp upper part or different other plate upper parts.
Fixing material B938T
Double Clamp Fixing material B938T
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and max. widht of bars 5 to 6,9 mm..
consisting of:- 2 x Plate upper part XOT50
- Clamp lower part XU900
- 2 x Screw M8 DIN 933
- 2 x Nut M8 DIN557
- 2 x Plastic locking ring
Screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B938T-ST+screw length (galvanized)
Order No. B938T -A2+screw length (stainless steel V2A)
Order No. B938T -A4+screw length (stainless steel V4A)
Fixing material B938K
Double clamp fixing material B938K
For GRP-Gratings with a pitch of 38,1x38,1 / 40x40 mm and max. widht of bars 5 to 6,9 mm.
consisting of:
- 2 x Plate upper part XOK13840
- Clamp lower part XU900
- 2 x Screw M8 DIN 933
- 2 x Nut M8 DIN557
- 2 x Plastic locking ring
screw length at least grating height plus 40 mm.
The fixing material is available in galvanized steel, stainless steel V2A and V4A
Order No. B938K-ST+screw length (galvanized)
Order No. B938K -A2+screw length (stainless steel V2A)
Order No. B938K -A4+screw length (stainless steel V4A)
Hinge S3838
Hinge S3838
For GRP-Grating height 38 mm and pitch 38,1x38,1 / 40x40 mm.
consisting of:
- 1 x strap hinge 79,7 x 40 mm with welded hinge pin with threaded head
- 1 x strap hinge 79,7 x40 mm
- Washer
- Nut DIN985
The hinge is available in galvanized and stainless steel V4A:
Order No. S3838-fvz-V1 (galvanized) - right execution
Order No. S3838-fvz-V2 (galvanized) - left execution
Order No. S3838-A4-V1 (V4A) - right execution
Order No. S3838-A4-V2 (V4A) - left execution
For an opening angle of approx. 90° the hinges will be screwed flush with the top of the gratings. If bigger opening angles are requested the hinge has to be screwed higher than the top surface of the grating. This will mean that the hinges will protrude. The hinges are not accessible for car loads.
Handle B8115
Handle B8115
retractable Handle for GRP-Gratings with pitch 38,1x38,1 / 40x40 mm and 19,05 x 19,05 / 20 x 20 mm – max. width of bars 5 - 6,9 mm
consisting of:
- Bügel XB114-38
- 2 x Plate upper parte XOT50
- 2 x Nut DIN985
The Handle is available in stainless steel V4A.
Order No. B8115 -A4 (stainless steel V4A)
